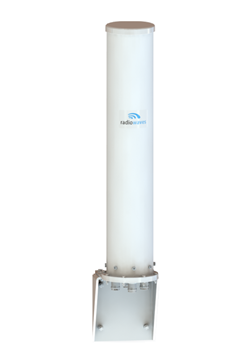

POMNQX-2.7

0.711 M | 2.33 ft. Pseudo Omni Antenna, Slant 45 +/-, polarized, 2.5-2.7

POMNQX-2.7, POMNQX-2.7

The RadioWaves Pseudo Omni offers excellent performance in a small aesthetic form factor and is ideal for small cell deployments with a compact design allowing for installation in city mandated enclosures and street furniture while meeting PIM, gain and isolation requirements.

  • 4-port OMNI antenna, 2500-2700MHz, 45 Degree Slant Polarization
  • Compact form with 6 dBi gain
  • Low PIM ideal for small cell deployments
  • 4 x 4 MIMO
Download Spec Sheet
POMNQX-2.7

General Specifications

Antenna Type
Omnidirectional Antenna
Size, nominal
2.33 ft | 0.711 m
Polarization
Slant 45+/-

Electrical Specifications

Operating Frequency Band
2.5 - 2.7 GHz
Half Power Beamwidth, Horizontal
360 degrees
Half Power Beamwidth, Vertical
29 degrees
Cross-Polarization Discrimination
12 dB
Gain, Low Frequency
5 dBi
Gain, Mid Frequency
5.7 dBi
Gain, High Frequency
6 dBi
VSWR
1.5:1
Return Loss
-14 dB
Port to Port Isolation, Max (dB)
23 dB
PIM (2x5W), Max (dBm)
-110 dBm
Electrical Downtilt, Degrees
0 degrees
Input Power per Port, Max (Watts)
100 Watts

Mechanical Specifications

Mounting Pipe Diameter, Min
2 inch | 5.08 cm
Mounting Pipe Diameter, Max
7 inch | 17.78 cm
Net Weight
5 lbs | 2.33 kg
Wind Velocity Operational
100 mph | 160 km/h
Wind Velocity Survival Rating
120 mph | 200 km/h
Mechanical Configuration
SBPSO
Operating Temperature Range
-40 to +60 C
Ingress Protection
IP65

Regulatory Compliance

Industry Canada Compliance
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
9 lbs | 4.1 kg
Dimensions, L x W x H
32.5 x 10 x 8.3in | 82.6 x 25.4 x 21.1 cm
Shipping Volume
1.6 cu ft | 0.04 cu m

Additional Comments

4 Type 4.3-10 Connectors to support MIMO Operation

Technical Drawings

SBPSO
