RDC-DIN716

Ruggedized Dust Cap

RDC-DIN716, RDC-DIN716

RadioWaves offers ruggedized dust caps to provide heavy duty protection
in the most demanding environments. Manufactured using high quality
nickel coated brass, these durable dust caps are assembled with a one
piece rubber seal thus providing IP68 waterproof rating for the coax
connector once installed.

FEATURES
• Solid Rubber Gasket
• Nickel Coated Brass
• Ruggedized Design
• DIN Female Connector
• IP 68 Rated

Download Spec Sheet

General Specifications

Antenna Type
Accessory: Ruggedized Dust Cap

Mechanical Specifications

Net Weight
0.13 lbs | 0.06 kg
Mechanical Configuration
RDC-DIN716

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

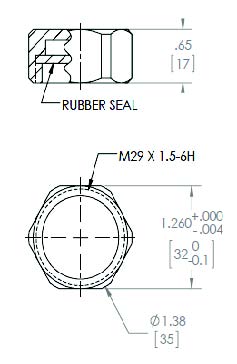

Technical Drawings

RDC-DIN716
Click to enlarge tooltip
OL-RDC-DIN716
Click to enlarge tooltip
