HPLPD1-4.7

0.3 m | 1 ft High Performance Parabolic Reflector Antenna, Dual-polarized, 4.4-5GHz

HPLPD1-4.7, HPLPD1-4.7NS

The HP High Performance Series by RadioWaves offers a full line of high performance parabolic antennas engineered to provide ETSI class 2/3 radiation pattern performance as well as excellent gain.  RadioWaves field-proven pre-assembled antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance.  The included radome ensures robust and reliable performance under the most challenging conditions.  If it’s rugged, it must be RadioWaves!


FEATURES AND BENEFITS
O High Performance ETSI Class 2/3* Parabolic Antennas – Excellent performance for a wide range of applications
O Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality

*ETSI Class depends on frequency band

Download Spec Sheet
HPLPD1-4.7

General Specifications

Antenna Type
High Performance Parabolic Reflector Antenna
Size, nominal
1 ft | 0.3 m
Polarization
Dual

Electrical Specifications

Operating Frequency Band
4.4 - 5 GHz
Half Power Beamwidth, Horizontal
13.1 degrees
Half Power Beamwidth, Vertical
13.1 degrees
Cross-Polarization Discrimination
20 dB
Front to Back Ratio (F/B)
40 dB
Gain, Low Frequency
20.2 dBi
Gain, Mid Frequency
20.8 dBi
Gain, High Frequency
21.3 dBi
VSWR
1.5:1
Return Loss
-14 dB

Mechanical Specifications

Fine Azimuth Adjustment
+/- 10 degrees
Fine Elevation Adjustment
+/- 30 degrees
Mounting Pipe Diameter, Min
2 inch | 5.08 cm
Mounting Pipe Diameter, Max
4.5 inch | 11.4 cm
Net Weight
15 lbs | 6.8 kg
Wind Velocity Operational
90 mph | 145 km/h
Wind Velocity Survival Rating
125 mph | 201 km/h
Mechanical Configuration
HPCPE
Axial Force (FA)
46 lbs | 204 N
Side Force (FS)
13 lbs | 58 N
Twisting Moment (MT)
27 ft-lbs | 36 Nm
Operating Temperature Range
-40 to +60 C
Max Pressure, PSIG, (if waveguide interface)
5

Regulatory Compliance

FCC
undeclared
Industry Canada Compliance
undeclared
ETSI
undeclared
RoHS-compliant
Yes

Shipping Information

Package Type
Cardboard
Gross Weight
23 lbs | 10.4 kg
Dimensions, L x W x H
25 x 16 x 13in | 64 x 41 x 33 cm
Shipping Volume
3.01 cu ft | 0.09 cu m

Additional Comments

*Additional OEM interfaces and adapters may be available. Contact RadioWaves for a complete and current list of available adapters.

Technical Drawings

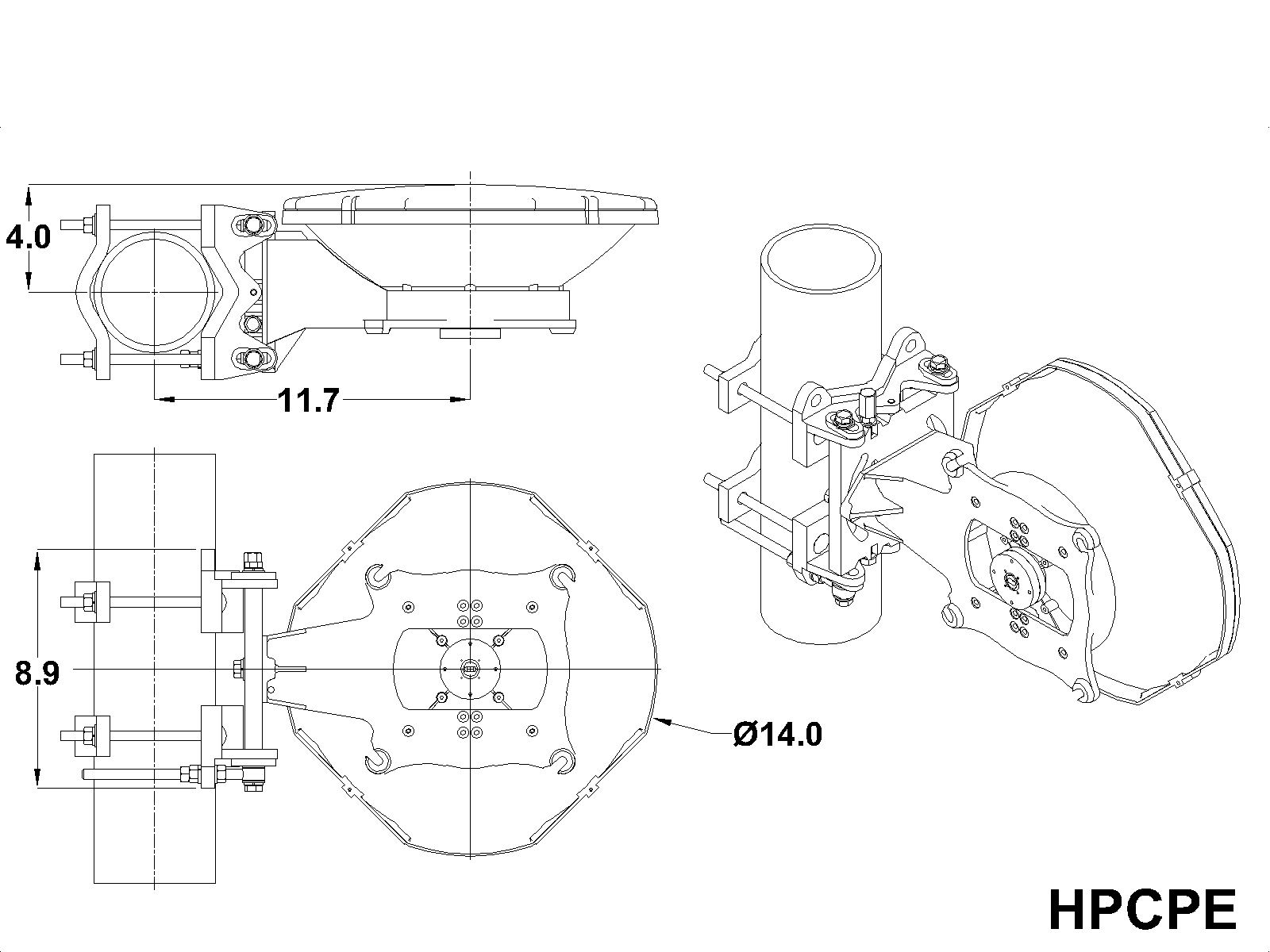

OL-HPCPE
